Post By Admin
April 23, 2025Noticed a small puddle forming under your water heater?
Or maybe there’s a drip coming from the bottom valve that won’t stop, no matter how many times you tighten it?
A water heater leaking from the drain valve is a super common issue, especially in older systems or after routine maintenance.
However, you can fix it quickly by yourself, and knowing what to look for can save you from a much bigger headache, like a repair bill, later on.
In this guide, we’ll break down exactly why it happens, how to stop the leak, and when it’s time to call in the experts.
But, if you’re thinking of upgrading instead? Check out our hot water services for installation or replacements.
What is a Water Heater Drain Valve?
The drain valve on your water heater might not look like much, but it plays an important role in keeping your system healthy.
Typically found near the bottom of the tank, this valve allows you to flush out sediment that naturally collects over time inside the tank. Draining your tank once or twice a year is recommended maintenance, especially in areas with hard water.
Drain valves are usually made of plastic or brass. While plastic ones are cheaper, they’re more prone to cracking, especially after years of use.
Brass valves, on the other hand, are more durable but still subject to wear and tear. When you notice a hot water heater leaking from the drain valve, it’s often a sign that this small part is no longer working properly.
What Causes a Drain Valve to Leak?
There isn’t just one reason for a water heater drain valve leaking. But you can easily diagnose it once you know what to look for:
1. Loose valve
Sometimes, the valve may not have been shut all the way after a previous flush. It only takes a slight misalignment or a few turns too loose to create a small drip. This is one of the easiest fixes because you just need to tighten it gently.
2. Worn-out components
Inside the valve is a small washer or seal that can wear down over time. This is particularly true for older systems that haven’t been serviced in a while. Once the seal fails, water can sneak through even if the valve is closed tightly.
3. Sediment build-up
If your water is full of minerals, the sediment can gather around the valve opening and prevent it from sealing properly. In more extreme cases, sediment can even cause corrosion or pressure build-up, forcing water through weak spots.
4. Physical damage
Plastic valves, in particular, are susceptible to cracks. Over-tightening or impact damage can cause hairline fractures that lead to persistent leaking. If you notice your hot water tank drain valve leaking, check the valve body closely for signs of damage.
5. Post-maintenance drips
It’s pretty common to see your water heater drain leaking after you’ve flushed it. This can be temporary since the residual water in the threads or valve body may drip for a few hours. If the leak continues longer than that, though, it’s a sign the valve didn’t close properly.
How to Fix a Leaking Drain Valve
Your safety is important when you start fixing a leaking drain valve. Especially since water heaters involve high temperatures and flammable components.
If you’re unsure at any point, don’t hesitate to call a licensed plumber, like Neighbourhood Plumbing. That said, if you’re confident enough to do a bit of DIY, follow these detailed steps.
1. Shut Off the Water and Power Supply
Start by turning off the power to the water heater. For electric systems, this means switching off the breaker at your home’s electrical panel. For gas systems, you’ll need to twist the gas control knob to the “off” or “pilot” position.
Once that’s done, locate the cold water supply valve, which is usually at the top of the tank. Then, turn it clockwise to shut it off. This will prevent new water from entering the tank during your repair.
If you need more explanation about a gas system, you can check out our article about how a gas hot water works.
2. Drain the Tank Below the Valve Level
You don’t have to empty the entire tank, but you’ll need to drain it enough so the water sits below the drain valve level.
Connect a standard garden hose to the valve, direct the other end to a safe drainage area (like a floor drain or garden), and open the valve.
To speed up the draining process, open a hot water tap elsewhere in your home. This will break the vacuum and allow water to flow out more freely.
Be careful here—depending on your system and recent use, the water can be extremely hot.

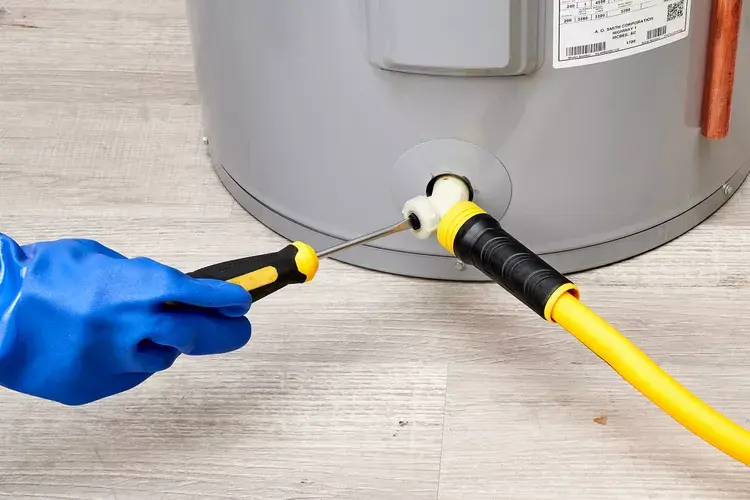

3. Assess and Tighten the Valve
With the tank drained, inspect the valve closely. If the valve appears intact with no cracks or corrosion, try tightening it gently using pliers. Don’t overdo it because you want a snug fit. Otherwise, you risk a stripped thread.
If the leak was caused by a loose valve, this might be all it takes to solve the issue. Turn the water back on slightly and watch for drips.
4. Replace the Valve if Necessary
If tightening doesn’t stop the leak, or if the valve is cracked, you’ll need to replace it. This is how you can replace the valve when needed:
- Unscrew the valve using a wrench.
- Wrap Teflon tape around the threads of your new valve (preferably brass).
- Screw in the new valve until it’s hand-tight, then give it an extra quarter turn with a wrench.
Once the valve is in place, you can start refilling the tank.
5. Refill the Tank and Restore Power
Turn the cold water supply back on slowly and keep a hot water tap open inside the house. This allows air to escape while the tank fills. Once you see a steady stream of water from the tap, you can close it.
Finally, switch the power back on or turn the gas knob to “on”. Monitor the area around the valve for leaks over the next few hours.
FAQ about Water Heater Leaking from Drain Valve
Still scratching your head about why your hot water heater’s drain valve is leaking and hasn’t stopped?
Below are answers to some of the most common questions homeowners ask when dealing with water heater valve issues.
Is it normal for a water heater to leak from a release valve?
No, this often indicates a pressure issue. The release valve (or temperature and pressure relief valve) is a safety mechanism. If it’s releasing water, your system could be overheating or over-pressurised. Don’t ignore it—call a plumber.
You can also learn more about your system’s lifespan or why your hot water gone cold quickly if another issue arises.
Why is my water heater leaking from the discharge tube?
That tube is connected to the TPR valve mentioned above. If water is leaking from it, the system is likely under too much pressure. This could relate to expansion tank failure, overheating, or sediment causing incorrect temperature readings.
Can you replace a water heater drain valve without draining?
Technically? Yes. Practically? No. Attempting to remove the valve without draining can result in hot water shooting out under pressure. It’s dangerous, messy, and not worth the risk unless you’re a professional.
Conclusion
A hot water heater leaking from the drain valve doesn’t always mean it’s time for a new unit.
In many cases, it’s a minor issue you can handle yourself with a wrench and some Teflon tape. But if your valve is damaged beyond repair, or your system is showing its age, it may be more cost-effective to look into a new unit.
